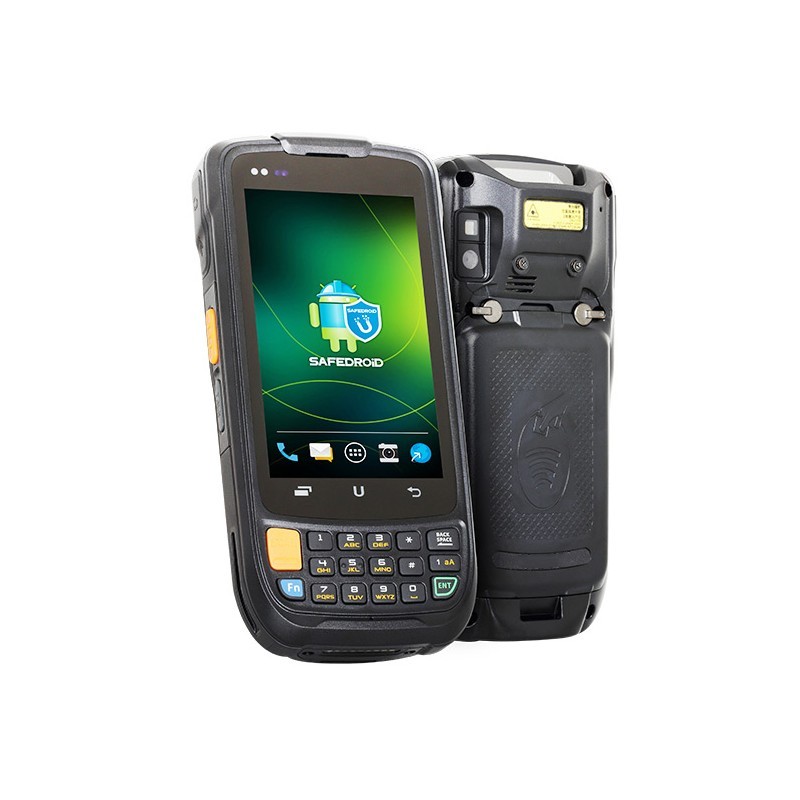

BC-PDR-203 Enterprise Security Intelligent Terminal
₨ 58,000
Security Intelligent Terminal BC-PDR-203 uses Android 4.0 system and supports one-dimensional and two-dimensional bar code scanning. As for industrial design,it has reached IP67,and it's professional for enterprise data security.
- Description
Product Description
Features & Benefits:
1- All-in-one solution
HF RFID reader/writer, 3.5G world mobile phone, mobile computer, bar code
scanner, high resolution digital camera and GPS expanded device functionality, to
protect your investment and to minimize total cost of ownership (TCO).
2- The most rugged design and reliability
BC-PDR-203 can affords multiple drop (impact) test up to 5ft./1.5m, IP65 sealing
complete protection against dust and splashing liquid, upgraded shock absorption
for internal main circuit board and all electronics.
3- Innovative scanning barcode technology
Integrated imager provides perfect bar code scanning performance which is
superior to other scan engines in the market. It delivers high speed, accurate 1D
barcode reading in any orientation, and decodes even low-quality symbols at
various conditions.
4- Ergonomic and pocketable shape design
Human factor has been deliberate concerned regardless of hand size with overall
device interaction is highly intuitive. It has integrated 3 scanning trigger keys which
is facility to capture the barcode data when and where you need it.
Additional information
| OS | Safedroid OS (Based on Android 4.3/5.1*) |
|---|---|
| CPU | Quad-Core 1.2GHz |
| Display | 4.0 inch TFT-LCD HD (480x 800) color screen |
| RAM | 1GB |
| ROM | 8GB |
| Dimensions | 154mm x 73 mm x 30mm |
| Weight | 310g (Battery included) |
| Buttons | 1.Number / Alphabetic keys(Including *, #, Scan, 1aA, Backspace, Enter and Fn); 2.Side: Scan button x 2, volume up/down button, power button, reset button, custom key. |
| 1D Laser | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded. |
| 2D CMOS Laser | 1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes; 2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse; Postal Codes: U.S. Postne, U.S. Planet; U.K. Postal; Japan Postal; Australian Postal; Netherlands KIX Code; USPS 4CB/One Code/Intelligent Mail; UPU FICS Postal. |
| Main Battery | Rechargeable 3.8V, 3800mAh lithium polymer battery pack |
| RTC Battery | Real time clock battery |
| Wi-Fi | 802.11 b/g/n/a* wireless communication |
| Bluetooth | Bluetooth 4.0 |
| 4G * | TDD-LTE: B38/B39/B40/B41 FDD-FTE: B1/B3 |
| 3G | UMTS/HSDPA/HSPA/HSPA+: 850/900/2100MHz |
| 2G | GSM/EDGE/GPRS: 850/900/1800/1900MHz |
| Camera | 5MP camera with LED flash and auto-focus function |
| RFID/NFC | Supports 13.56Mhz, ISO14443A&B and ISO15693 standard, NFC. |
| GPS | GPS, A-GPS. |
| Sensor | Proximity sensor, light sensor and acceleration sensor |
| Slot | Micro SD/TF x 1, Micro SIM x 1, SAM x 1 |
| Interfaces | Mini USB x 1, Pogo pin x 1, 3.5mm Audio port x 1 |
| Audio | Loadspeaker, Microphone, Earpiece |
| Standard Accessories | Power adaptor, Data cable, One battery. |
| Optional Accessories | Cradle, Stylus |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Humidity | 5% ~ 95% (non-condensing) |
| Drop Durability | 1.5m |
| IP | 65 |
