CEIA HI-PE Multi Zone


High Performance Walk-Through Multi-Zone Metal Detector

  • Accurate Detection of magnetic, non-magnetic and mixed-alloy metal weapons
  • High Discrimination and Throughput
  • Exceptional Immunity to environmental interferences
  • Unmatched Reliability
  • Rapid Installation


  • Description
  • Reviews (0)

Product Description

HI-PE Multi Zone is the basic model in this series, and is characterized by being extremely easy to install and use, and by high levels of reliability and immunity to interference from external electromagnetic sources.


Accurate Detection

  • Capable of detecting a wide range of threat objects composed of magnetic, non-magnetic metals and mixed alloys
  • Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar

The HI-PE is a high performance walk-through Multi-Zone Metal Detector which meets all International Security Standards. A “height on person” display actually indicates, by means of illuminated LED’s, the position of the weapon on the person.

The HI-PE allows a high level of discrimination between significant metal masses, such as the weapons which are to be detected, and personal metal effects. Exceptional immunity to environmental interferences makes it easy to use even when electrical noise is encountered. The detection capability is independent of the transit speed.

Breakthrough Value

  • Superior CEIA reliability slashes total cost of ownership. The overall system is characterized by sturdy, reliable electronic and mechanical construction, and ease of installation.
  • No periodic re-calibration and preventive maintenance required


HI-PE Multi Zone - detail

Single & Multiple location of the metal mass detected

Key features

  • Accurate Detection of magnetic, non-magnetic and mixed-alloy metal weapons
  • Wide range of threat detection from guns to ½ cutter blade
  • High Discrimination and Throughput
  • Exceptional Immunity to external interferences
  • High precision bidirectional counter with automatic rescreening compensation (option)
  • Random alarm capability programmable from 0% to 100% (option)

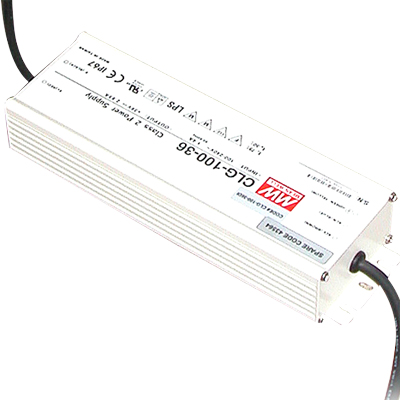

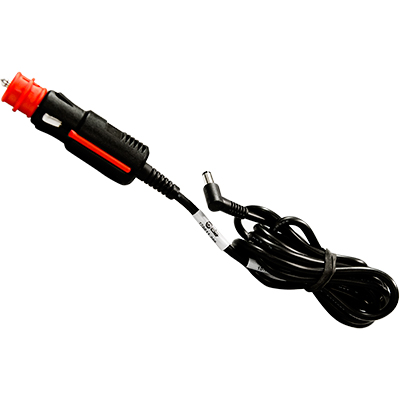

  • Powered by safe low voltage DC

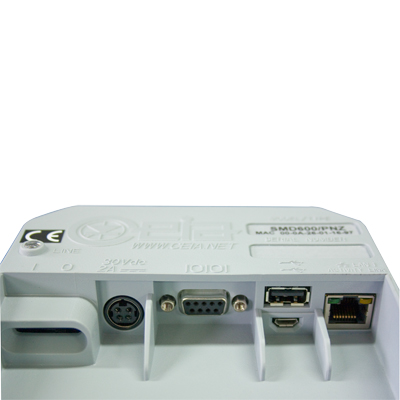

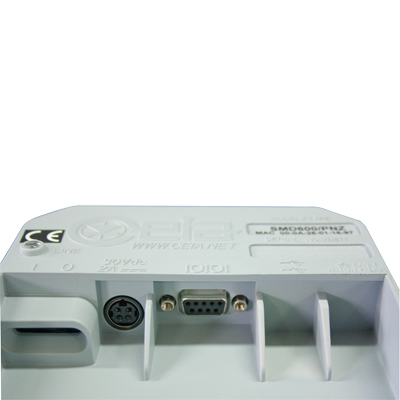

  • Standard Interfaces: RS-232, Infrared
  • Other available interfaces: Ethernet, USB


  • Continuous self diagnostic system
  • Proven reliability
  • No periodic re-calibration and preventive maintenance required
  • No scheduled maintenance
  • Fully digital design

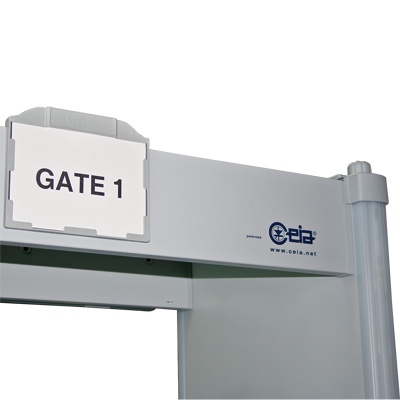

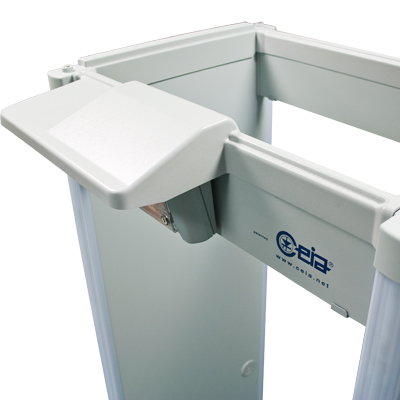

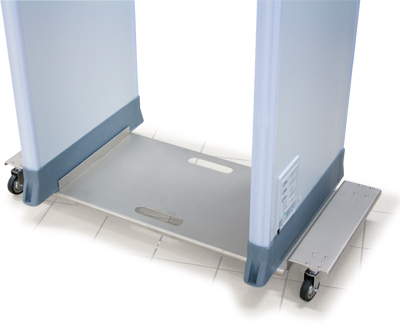

Walk-through gate structure

  • State-of-the-art, robust and washable panels
  • Protected against aging, weather and wear

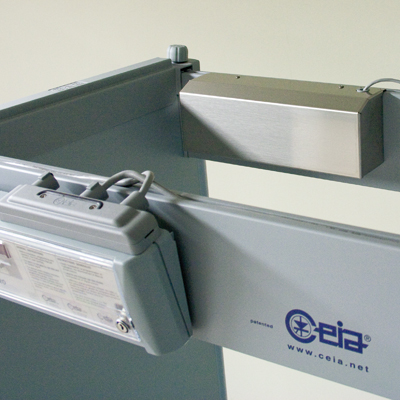

Central control unit

  • Ergonomic and robust design
  • High visibility alphanumeric display and programming keyboard
  • Made of advanced plastics or stainless steel and anti-vandalism construction (option)
  • Access to the front panel protected by hardware key and two levels of passwords

Alarm signalling

  • Visual signals: Multi-zone display bar for “height on person” localization; 2 light bars with selectable entry/exit and pacing indication; Green and red metering signals proportional to the mass of the detected target
  • Audio signals: 10 selectable continuous and pulsed tones; 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of signalling

  • Visual: Fixed or proportional to the mass in transit – visible from 6m under lighting of 4000lux.
  • Visual zone indication: 2, 4, 8 or 20 independent zones selectable

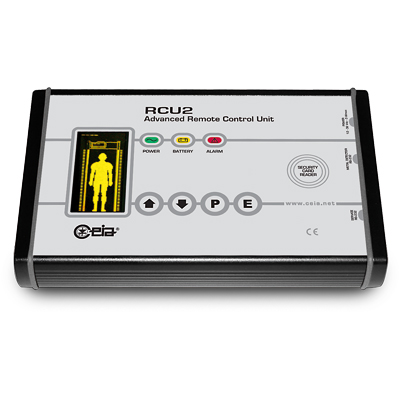

  • Remote via RS-232, Infrared Remote Control Unit or Ethernet 10/100 base T interface
  • Security level: International Standard (IS) command
  • Local by Control Unit alphanumeric display and keyboard
  • Programming access protected by user and super-user passwords

Operational features

  • Quick reset time as short as 0.2 seconds for high throughput rate
  • Very high detection speed (up to 50 ft/sec.)
  • One-touch key reading of inbound, outbound and Security Level Data

Installation data

  • Automatic synchronization between two or more metal detectors with distance of down to 5 cm without the use of external cables
