Hydraullic Speed Bump and Tire Killer
₨ 95,000
Tyre Killer combines two functions: speed bump and Tire Killer. It can control vehicle speed and prevent illegal entry
- Description
Product Description

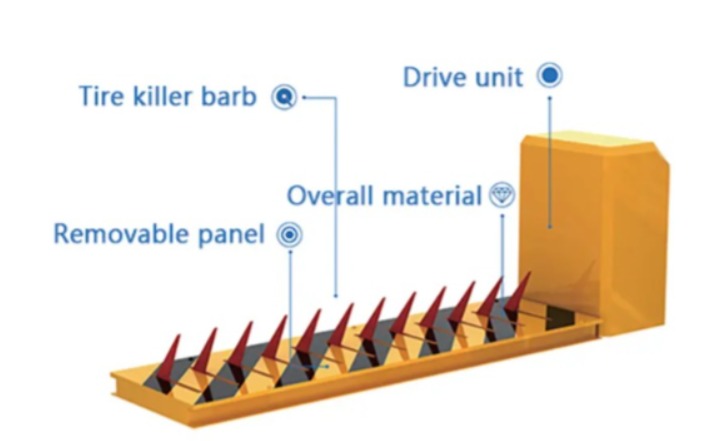

Tire killer barb
Made of A3 carbon steel, if an unauthorized vehicle is forcibly rammed into it, it will directly damage the vehicle tires.
Tire breaking blade height 130MM (can be customized)
Tire breaking blade thickness 10MM (can be customized)
Removable panel
The Tire Killer panel and frame support structure are fixed by screws and the panels are removable for easy maintenance and obstruction removal.
Drive unit
The motor controller has a waterproof design on the outside and is equipped with an electromechanical power unit drive internally, making it easy to lift and lower. It can be controlled by a variety of intelligent controls such as remote control, mobile phone APP, license plate recognition, ground sensing linkage, traffic light linkage, etc.
Overall material
Tire Killer is welded from A3 carbon steel and treated with surface spraying effect
- Application scope: intersection safety protection in key areas
- Overall material: Made of A3 all steel
- Surface treatment: anti-rust primer + fluorocarbon topcoat
- Protection grade IP67
- Device length (interception width) can be customized
- Equipment width: 500mm for single-sided thorn model, 750mm for double-sided thorn model
- Ground height: flush with the ground
- Electromechanical control (standard): electromechanical power unit control
- Passing pressure: can pass 60-ton container trucks
- Power supply: 220 (control voltage 24V)
- System power (w): 180w
- Rise time: ≤1s
- Falling time: ≤0.8s
- Storage environment: -30C~65C, rainproof, moistureproof and dustproof
- Maximum weight: 60T
- Tire breaking blade height: 120mm
- Tire breaking blade thickness: 10mm
- Material thickness: 10mm (optional 16, 20, 25mm)
- Movement form: electric drive
- Working environment:-40C~70C
- Control method: wireless remote control or line control can be equipped with license plate recognition and red light linkage
- Body specifications: 360mm long, 500mm wide, 700mm high
- Equipment length, width and height: 3000*500*80
- Lifting height: 130mm
- Original chips imported from the United States (industrial grade)
- Power switch (industrial grade)
- Control solenoid valve (industrial grade)
- Power supply industrial grade (-40C~85C)
- Working temperature:-40C~70C
- Remote control range: within 50m
