Hydraullic Traffic Road Spikes – Tyre Killer
₨ 85,000
- The underground foundation shell is made of high-strength steel plates and equipped with a solid keel support structure.A rotating shaft is installed in the casing and is connected to the tire breaking teeth.
- Each piece of solid tire teeth is welded to a reliable rotating shaft at a mutual distance of 140mm, and the lifting and lowering movements are performed through the rotating shaft.
- The top cover of traffic spike is designed in accordance with DIN 1072 standards and is very strong and can carry large vehicles over 100kn to pass smoothly.
- It adopts motor power mode, simple installation, easy maintenance, high safety performance and long service life.
- Description
Product Description
Control unit
The motor controller has a waterproof design on the outside and is driven by an electromechanical power unit internally. It is easy to lift and lower. It can be controlled by a variety of intelligent controls such as remote mobile phone APP, license plate recognition, ground sensing linkage, traffic light linkage, etc.

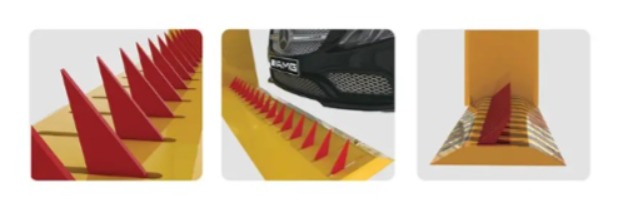

Tire killer barb
Made of A3 carbon steel, if an unauthorized vehicle is forcibly rammed into it, it will directly damage the vehicle tires.
Tire breaking blade height 130MM (can be customized)
Tire breaking blade thickness 10MM (can be customized).
Fixed installation port
Traffic Spike has the same fixing port and is fixed with the ground by expansion screws, making it more stable and firm.
- Application scope: intersection safety protection in key areas
- Overall material: Made of A3 all steel
- Surface treatment: anti-rust primer + fluorocarbon topcoat
- Protection grade IP67
- Device length (interception width) can be customized
- Equipment width: 500mm for single-sided thorn model, 750mm for double-sided thorn model
- Ground height: flush with the ground
- Electromechanical control (standard): electromechanical power unit control
- Passing pressure: can pass 60-ton container trucks
- Power supply: 220 (control voltage 24V)
- System power (w): 180w
- Rise time: ≤1s
- Falling time: ≤0.8s
- Storage environment: -30C~65C, rainproof, moistureproof and dustproof
- Maximum weight: 60T
- Tire breaking blade height: 120mm
- Tire breaking blade thickness: 10mm
- Material thickness: 10mm (optional 16, 20, 25mm)
- Movement form: electric drive
- Working environment:-40C~70C
- Control method: wireless remote control or line control can be equipped with license plate recognition and red light linkage
- Body specifications: 360mm long, 500mm wide, 700mm high
- Equipment length, width and height: 3000*500*80
- Lifting height: 130mm
- Original chips imported from the United States (industrial grade)
- Power switch (industrial grade)
- Control solenoid valve (industrial grade)
- Power supply industrial grade (-40C~85C)
- Working temperature:-40C~70C
- Remote control range: within 50m
